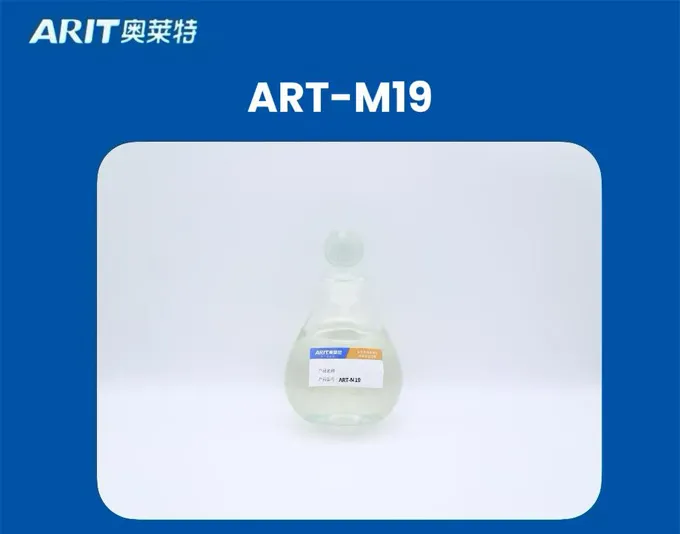

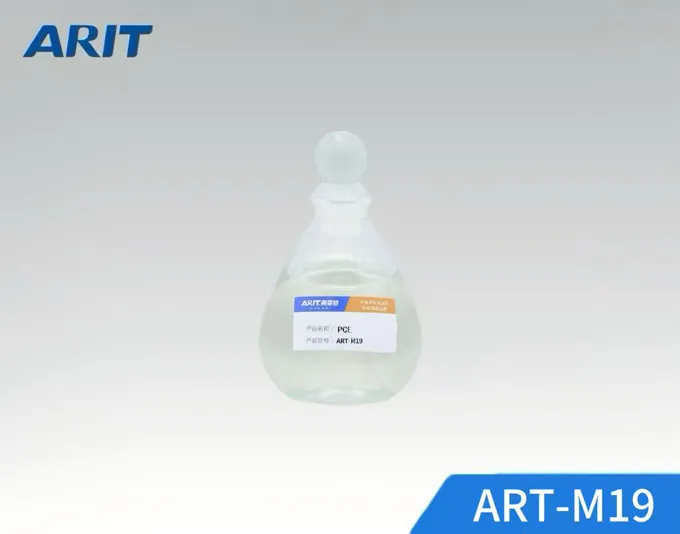

ART-M19
Fast Dispersing Type Polycarboxylate Superplasticizer Origin Liquor

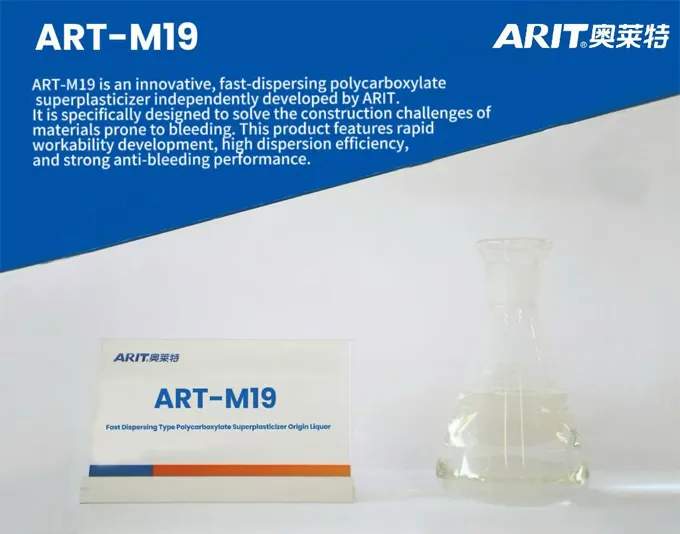

ART-M19 is an innovative, fast-dispersing polycarboxylate superplasticizer independently developed by ARIT. It is specifically designed to solve the construction challenges of materials prone to bleeding. This product features rapid workability development, high dispersion efficiency, and strong anti-bleeding performance. It is suitable for concrete projects with high workability requirements and a tendency to bleed, significantly improving workability and preventing segregation. It is especially effective for high-bleeding-risk materials such as washed sand, manufactured sand, and recycled aggregates.

 Products

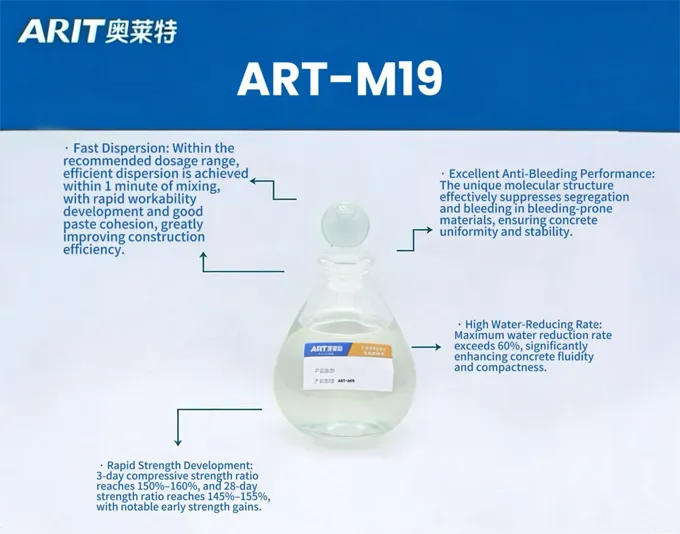

Features of ART-M19

Fast Dispersion: Within the recommended dosage range, efficient dispersion is achieved within 1 minute of mixing, with rapid workability development and good paste cohesion, greatly improving construction efficiency.

Excellent Anti-Bleeding Performance: The unique molecular structure effectively suppresses segregation and bleeding in bleeding-prone materials, ensuring concrete uniformity and stability.

High Water-Reducing Rate: Maximum water reduction rate exceeds 60%, significantly enhancing concrete fluidity and compactness.

Rapid Strength Development: 3-day compressive strength ratio reaches 150%–160%, and 28-day strength ratio reaches 145%–155%, with notable early strength gains.

Specification of ART-M19

Items	Performance
Appearance	Colorless,transparent
Solid Content(%)	40.0±1
PH	6.0±1
Alkali content (as Na2 O)	≤ 0.5 %
Density(g/cm3)	1.08±0.02
Chloride ion content	≤ 0. 1 %

Application Case

High-Strength Concrete

A C60 project in Zhejiang required more than 3 min mixing to reach proper workability, failing site demands. After blending ART-M19 with a conventional superplasticizer, mixing time was greatly shortened and concrete workability was markedly improved.

Manufactured-Sand Concrete

A ready-mix plant in Guangzhou producing C30 concrete with local manufactured sand (high stone-powder content, poor grading) suffered severe bleeding and segregation. With ART-M19 at low dosage, concrete dispersed rapidly, achieving 220 mm slump within 5 min with no segregation and virtually no slump loss after 1 h. Pumpability and construction efficiency were significantly enhanced.

Recycled-Aggregate Precast Elements

A Tianjin precast plant using recycled aggregate (high water absorption, complex composition) for stair elements experienced bleeding and slow early strength development. After adopting ART-M19, concrete showed fast workability, good cohesion, and no bleeding. 3-day strength reached 150 % of design strength, shortening demolding time and producing dense, defect-free surfaces.

Mountain-Sand Mass Concrete

A C40 mass concrete project in Guizhou using local mountain sand faced bleeding and segregation risks. ART-M19's rapid dispersion and stabilization maintained workability during 2h of pumping, enabling continuous placement in a single pour. The structure appeared uniform and dense, and strength development fully met design requirements.

Usage Instructions

The recommended effective solids content is 0.12 % – 0.20% of the total cementitious materials; the exact dosage must be predetermined through trial tests according to the raw materials, job-site conditions, construction codes, and technical requirements.
Any change in materials or environmental conditions may also cause the dosage to vary within a certain range, so new tests are required to re-establish the optimum dosage.

Complies with the Following Standards

GB/T 8076-2008

ASTM C494 Type F EN 934-2

Packaging

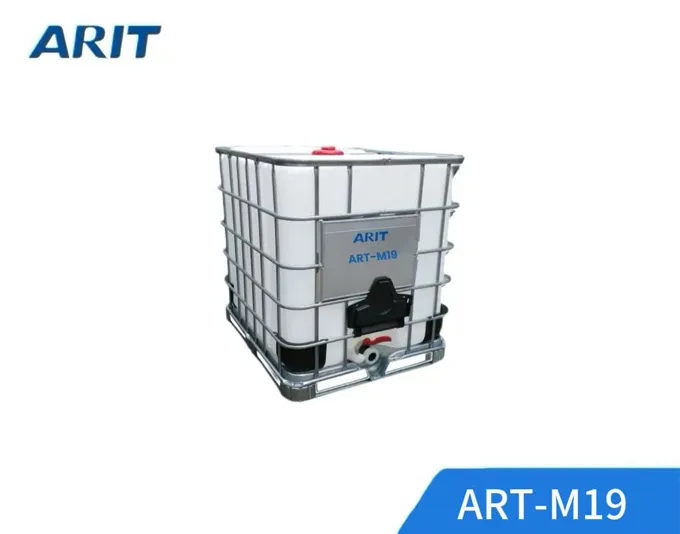

IBC Tank or Flexitank for customer demand

Storage

It should be stored in a cool and dry place, avoiding direct sunlight, and kept in a dedicated warehouse or a fixed location.
The effective storage period is 6 months. It can still be used after being tested and verified to be qualified if it exceeds the time limit.

Precautions

When changing the type of cement or using newly delivered cement, a compatibility test should be conducted.
Do not use in combination with naphthalene-based admixtures. When using in combination with other admixtures, compatibility tests should be performed.
Strictly follow the construction specifications during application.
The product information is only used to describe the product's characteristics and functions, and it is not a guarantee. Users are also required to carefully test the product's functions and its suitability. The functions and suitability of the product must be verified through testing conducted by qualified professionals.

Legal Notes

Retaining or disclosing product samples without the company's explicit permission is strictly prohibited.
In addition to the product quality itself, the actual performance also depends on other uncontrollable factors. If there are uncontrollable factors, company cannot guarantee the performance of the product.
Users are requested to strictly follow the technical guidance and product instructions for use. The company shall not be liable for any consequences resulting from unauthorized changes to the product usage method without the company's authorization.
