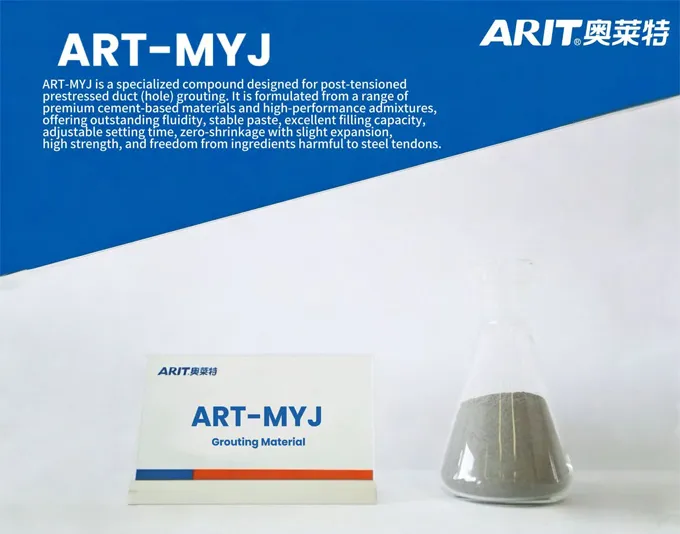

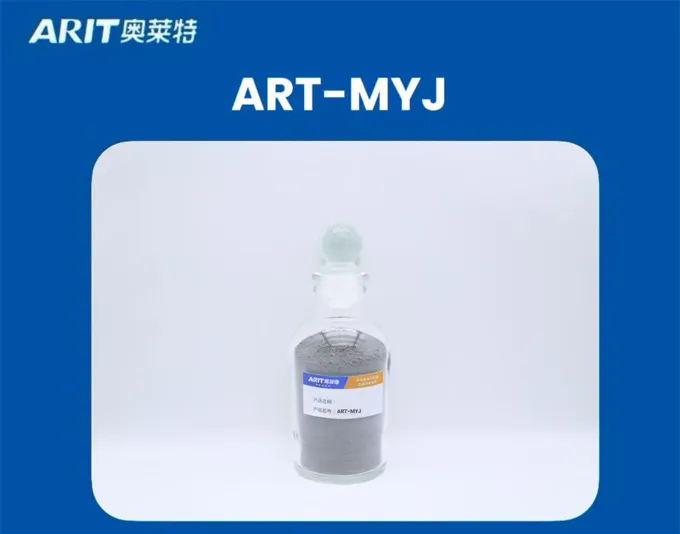

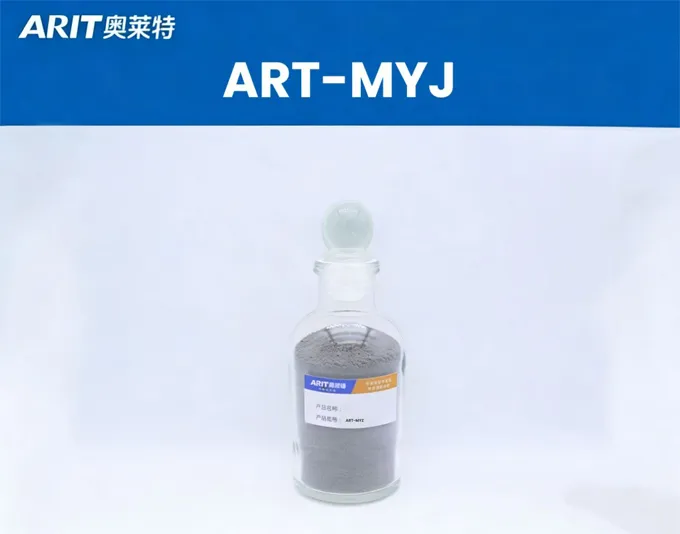

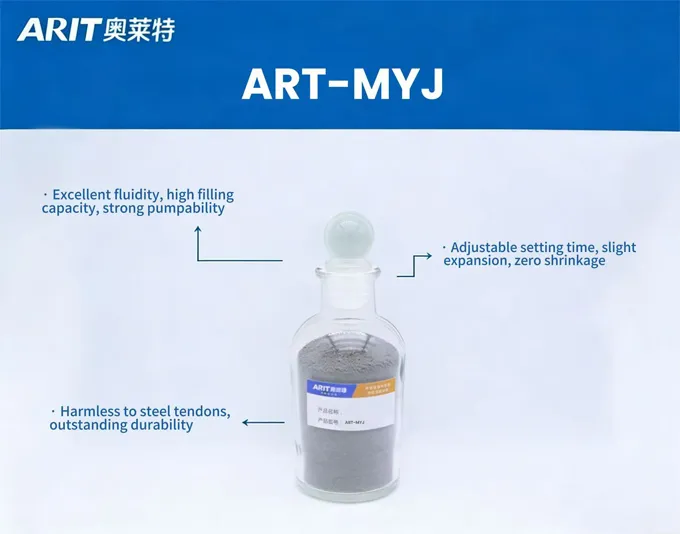

ART-MYJ is a specialized compound designed for post-tensioned prestressed duct (hole) grouting. It is formulated from a range of premium cement-based materials and high-performance admixtures, offering outstanding fluidity, stable paste, excellent filling capacity, adjustable setting time, zero-shrinkage with slight expansion, high strength, and freedom from ingredients harmful to steel tendons.
Items | Performance |
Initial flow(mm) | 10~ 17 |
Flow at 30 min(mm) | 10~20 |
Flow at 60 min(mm) | 10~25 |
3h Free expansion(%) | 0~2 |
24h Free expansion(%) | 0~3 |
Fill ratio | Pass |
3d Flexural / Compressive strength (MPa) | ≥5/20 |
7d Flexural / Compressive strength (MPa) | ≥6/40 |
28 d Flexural / Compressive strength (MPa) | ≥10/50 |
Bridge Prestressed Duct Grouting Project
For a high-speed railway bridge in Jiangsu, ART-MYJ grout was used to fill the prestressed ducts. The grout showed high fluidity, stability and pumpability, flowing easily through intricate ducts and meeting the strict quality and process-control demands of high-speed railway bridges. Field inspection and testing confirmed full, dense filling with no visible voids or segregation, ensuring complete coverage and long-term protection of the prestressing strands.
Water-to-powder ratio
Recommended ratio 0.26–0.28; fine-tune for the specific grouting zone.
Mixing
Pour 80 – 90% of the batch water into the mixer, start the machine (forced-action type, ≥ 1000 r/min), and add the full amount of grout powder steadily while mixing. After the last powder is in, mix at high speed for 3 min, add the remaining 10 – 20 % water, then mix 2 min more.
Continuous mixing
Keep the grout agitated both before use and throughout the injection to preserve uniformity and flow.
Injection window
From end of mixing to completion of injection, limit the elapsed time to 30 – 60 min depending on ambient temperature.
Equipment
Use a piston-type or vacuum pump; maintain pressure above 0.7 MPa.
Grout temperature
Keep the grout between 5 °C and 30 °C during injection; take corrective action if outside this range.

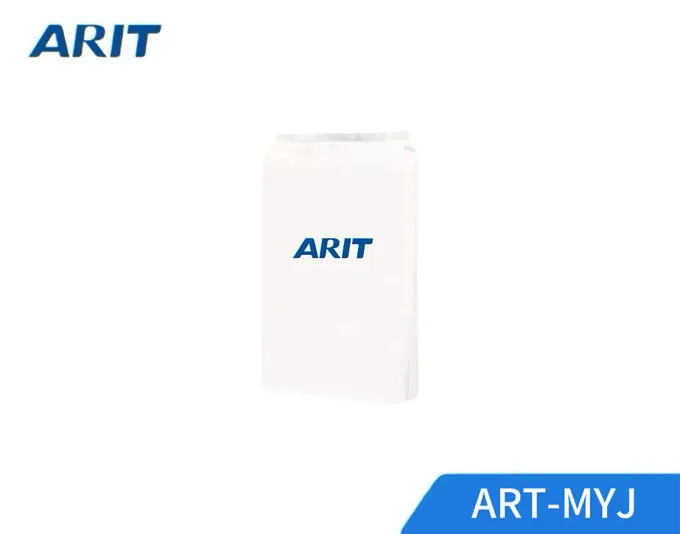

25kg bag for customer demand
It should be stored in a cool and dry place, avoiding direct sunlight, and kept in a dedicated warehouse or a fixed location.
The effective storage period is 6 months. It can still be used after being tested and verified to be qualified if it exceeds the time limit.
Work must be carried out strictly in accordance with applicable construction codes.
The information given describes product characteristics and performance only; it is not a warranty. Users are responsible for checking product function and suitability, which must be verified by qualified professionals through appropriate testing.
Retaining or disclosing product samples without the company's explicit permission is strictly prohibited.
In addition to the product quality itself, the actual performance also depends on other uncontrollable factors. If there are uncontrollable factors, company cannot guarantee the performance of the product.
Users are requested to strictly follow the technical guidance and product instructions for use. The company shall not be liable for any consequences resulting from unauthorized changes to the product usage method without the company's authorization.
Post-tensioning duct grouting for railway and highway prestressed bridges
Duct grouting in large prestressed structures
Leak-sealing grouting at concrete structure joints
Curtain grouting, anchor grouting, void filling or repair, etc.
